| ETWD SERIES |
| |
|
|
|
1,9 MB |
|
0,8 MB |
|
0,3 MB |
|
0,5 MB |
| |
|
|

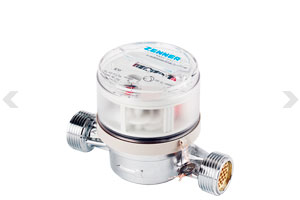

ETWD-N
Single-jet dry dial warm water meter.
Prepared for impulse output 1L.
Reed-sensor HEPAC code 4488513.
Revolving counter for easier reading.
Installation: horizontal, vertical, on its side.
Accuracy: R80H, R40V (others on request).
Sizes: DN15 - DN20.
T90, MAP16.
MID, CE.
|
Article code |
HEPAC code |
Article |
Impulse value |
Package |
Connectors |
251 002 |
- |
DN15/80 ETWD-N Q3=2,5 M3/H T90 |
1L |
1 / 50 |
1/2" x 3/4" |
251 102 |
- |
DN15/110 ETWD-N Q3=2,5 M3/H T90 |
1L |
1 / 30 |
1/2" x 3/4" |
251 202 |
- |
DN20/130 ETWD-N Q3=2,5 M3/H T90 |
1L |
1 / 25 |
3/4" x 1" |
251 302 |
4428514 |
DN20/130 ETWD-N Q3=4 M3/H T90 |
1L |
1 / 25 |
3/4" x 1" |
|
|
Enlarge and scroll images
|
ETWD-M
Single-jet dry dial warm water meter.
Prepared for remote reading (Modulator disc).
Revolving counter for easier reading.
Installation: horizontal, vertical, on its side.
Accuracy: R80H, R40V (others on request).
Sizes: DN15 - DN20.
T90, MAP16.
MID, CE.
|
Article code |
HEPAC code |
Article |
Modulator disc |
Package |
Connectors |
251 003 |
- |
DN15/80 ETKD-M Q3=2,5 M3/H T90 |
Standard |
1 / 50 |
1/2" x 3/4" |
251 103 |
- |
DN15/110 ETKD-M Q3=2,5 M3/H T90 |
Standard |
1 / 30 |
1/2" x 3/4" |
251 203 |
- |
DN20/130 ETKD-M Q3=2,5 M3/H T90 |
Standard |
1 / 25 |
3/4" x 1" |
251 303 |
- |
DN20/130 ETKD-M Q3=4 M3/H T90 |
Standard |
1 / 25 |
3/4" x 1" |
|
|
