Products » Product groups » Cold water meters » MNK series
MNK SERIES

3,1 MB
0,6 MB
0,4 MB
0,6 MB


Enlarge and scroll images

MNK-N

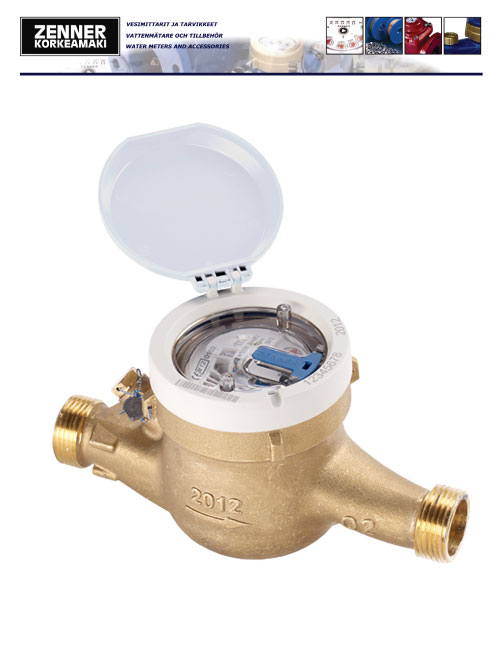

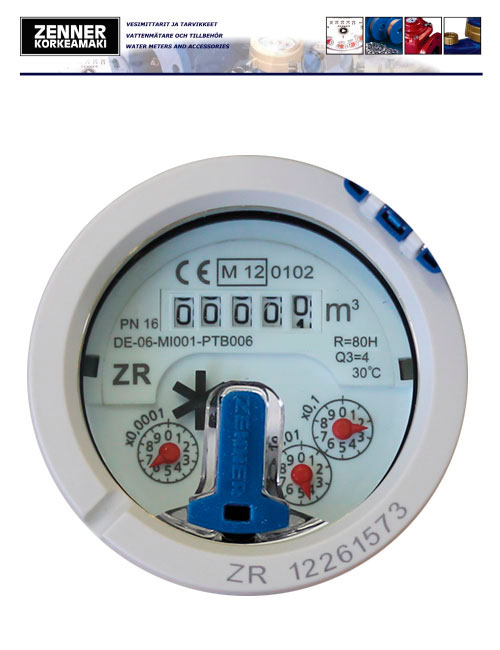

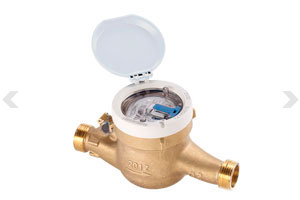

Multi-jet wet dial cold water meter.

- MNK-N = prepared for impulse output 10L,

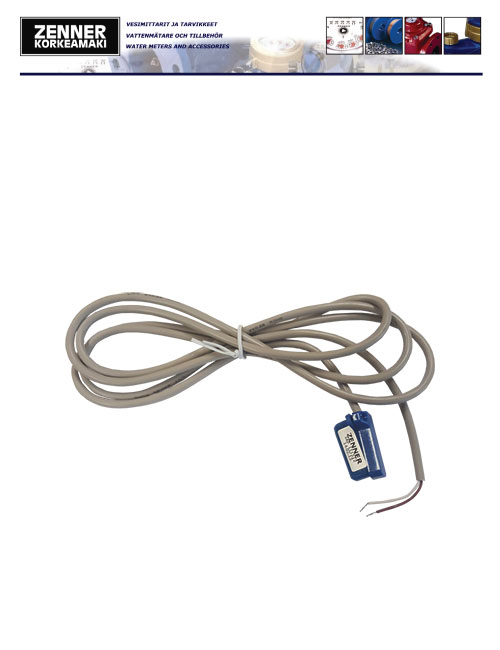

Reed-sensor code HEPAC 4488515.

Installation: horizontal, vertical, on its side. Size DN50 only horizontal meter face uppwards.

Sizes: DN15 - DN50.

T50, MAP16.

MID, CE.
Article code
HEPAC code
Article
Impulse value
Package
Connectors
140161
4418511
DN20/190 MNK-N Q3=4 m3/h T50
10L
1 / 10
3/4" x 1"
140144
4418512
DN25/260 MNK-N Q3=10 m3/h T50
10L
1 / 8
1" x 1 1/4"
142371
4418514
DN32/260 MNK-N Q3=10 m3/h T50
10L
1 / 8
1 1 /4" x 1 1/2"
140148
4418516
DN40/300 MNK-N Q3=16 m3/h T50
10L
1 / 4
1 1/2" x 2"
137075
4418518

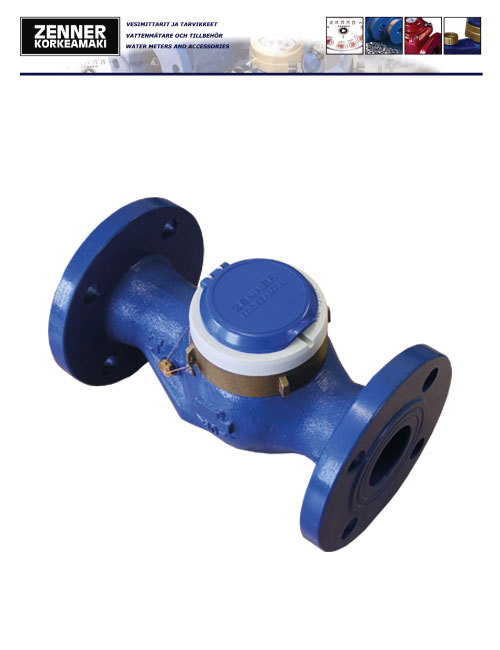

DN50FL270 MNK-N Q3=25 m3/h T50
10L
1 / 1
Flanges



Enlarge and scroll images



MNK-ST-N

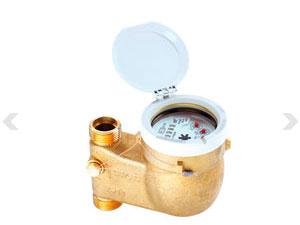

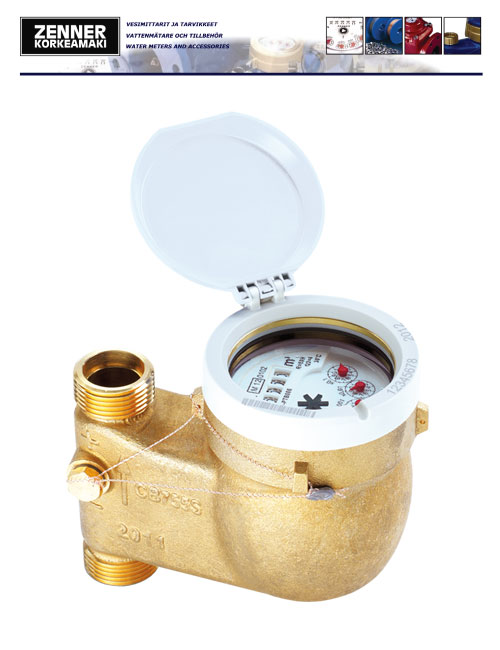

Multi-jet wet dial cold water meter, rising pipe version.

Prepared for impulse output 10L.

Reed-sensor code HEPAC 4488515.

Installation: in vertical pipe lines meter face uppwards.

Sizes: DN20 - DN40.

T50, MAP16.

MID, CE.
Article code
HEPAC code
Article
Impulse value
Package
Connectors
331 213
4418556
DN20/105 MNK-ST-N Q3=4 m3/h
10L
1 / 10
3/4" x 1"
331 313
-
DN25/150 MNK-ST-N Q3=10 m3/h
10L
1 / 8
1" x 1 1/4"
331 413
-
DN40/150 MNK-ST-N Q3=16 m3/h
10L
1 / 4
1 1/2" x 2"
