WPHD SERIES

1,9 MB
0,8 MB
0,3 MB
1,4 MB


Enlarge and scroll images

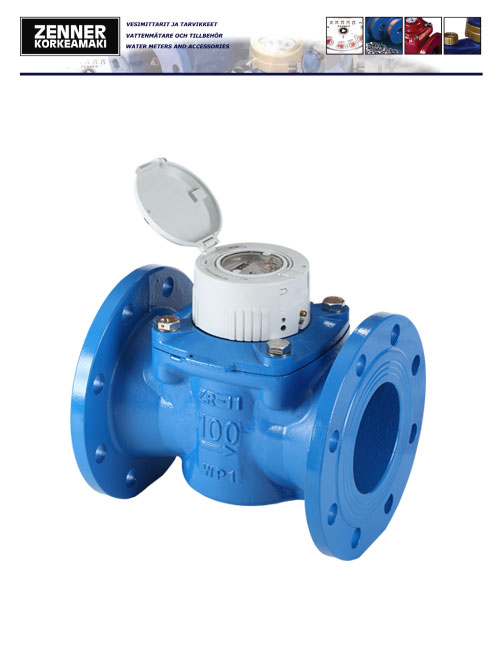

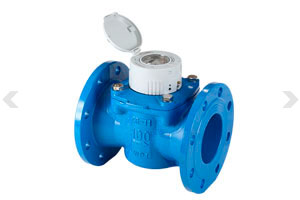

WPHD

Woltman type dry dial cold water meter.

Prepared for impulse output 100L or 1m3 (DN50 - DN125).,

Reed-sensor HEPAC code 4488514.

Prepared for remote reading (Modulator disc).

Installation: horizontal, vertical, on its side.

Accuracy: R100H, R63V (others on request).

Sizes: DN50 - DN200.

T50, MAP16.

MID, CE.
Article code
HEPAC code
Article
Impulse value
Package
Connectors
522100
4418572
DN50FL200 WPHD-N Q3=25 M3/H T50
100L, 1m3 (10L)
1 / 1
Flanges
522200
4418573
DN65FL200 WPHD-N Q3=40 M3/H T50
100L, 1m3 (10L)
1 / 1
Flanges
522300
4418574
DN80FL225 WPHD-N Q3=63 M3/H T50
100L, 1m3 (10L)
1 / 1
Flanges
522400
4418575
DN100FL250 WPHD-N Q3=100 M3/H T50
100L, 1m3 (10L)
1 / 1
Flanges
522500
-
DN125FL250 WPHD-N Q3=100 M3/H T50
100L, 1m3 (10L)
1 / 1
Flanges
522600
-
DN150FL300 WPHD-N Q3=250 M3/H T50
1m3, 10m3 (100L)
1 / 1
Flanges
522700
-
DN200FL350 WPHD-N Q3=400 M3/H T50
1m3, 10m3 (100L)
1 / 1
Flanges
522800
-
DN250FL450 WPHD-N Q3=630 M3/H T50
1m3, 10m3 (100L)
1 / 1
Flanges
